Thursday 1 May 2014

INSTALLING HADOOP MULTINODE CLUSTER ON UBUNTU


In my last article INSTALLING HADOOP SINGLE NODE CLUSTER ON UBUNTU , I discussed about how to install a single node hadoop cluster on Ubuntu 12.04.

Going forward in this tutorial we will learn how to set up a multinode cluster using two or three independent single node cluster.

PREREQUISITE

As a prerequisite first we will set up two or three single node hadoop clusters using the previous post and then we will merge it to set up a complete multi node distributed hadoop cluster of two or three nodes. In this tutorial I will go with an assumption that we have three individual Ubuntu setups with single node hadoop cluster installed.

CONFIGURATIONS

Now we will modify certain configurations to make one of the three nodes as the "Master Node"(which will also act as slave) and the other two nodes as the "Slave Node".

Before continuing to make the configurations we will shut down all the single node clusters indivisually. Move to the hadoop/bin directory and type stop-all.sh with hadoop user in control.


Do this individually for all the three single node clusters. Type JPS  to ensure that none of the hadoop daemons are running on any of the clusters.



Now go to the /etc/hosts file on each of the machine and list out the ip address and the hostname of all the three machines. Open the file with sudo user i.e. the user which had sudo access. This is necessary so that all the three machines recognize each other. The format for specifying the host name and the ip will be :-

                                                    <ip>             <hostname>




Do this for all the three machines.


SSH CONTROL

Now we will ensure that the hadoop user on the master node  should be able to connect to itself and also to the slave nodes without any password authentication.

Note :- The hadoop user in all the three machines is bijoy.

If you followed my previous document for setting up a single node hadoop cluster, then the public SSH key for the hadoop user of the master node should be in $HOME/.ssh/id_rsa.pub

Now we just have to copy the SSH key of the hadoop user of the master node to the authorized_keys file of the hadoop user of the slave nodes which should be in $HOME/.ssh/authorized_keys.
We will issue the following command to distribute the ssh key of the hadoop user of the master node.

Issue this command on the machine which you want to keep as the master node.




Here bijoy is the hadoop user for both the machines and bijoy and deepika are the hostname for voth the machines respectively.
This command will ask for the login password for the hadoop user on the slave node on which you are copying the master node's SSH key , then will copy the SSH key for you, and create the correct directory setting up the permissions as required.
Repeat the same process for the other slave nodes also.

Next, we have to test the SSH setup. We will do it in three steps :-

  • First we will connect from master node to master node.



           In the above image pawan is the master node.

  • Secondly, we will connect from master node to the first slave node.


          In the above image deepika is one of the slave nodes.

  • Lastly, we will connect from the master node to the second slave node.


\


           In the above image bijoy is one of the slave nodes.


MASTER AND SLAVE NODE CONFIGURATIONS

Now we will do the configurations for making one node as the master node and the other two as slave nodes. The master node will also act as a slave node because we want more space for spreading the data storage and more machines to process data in parallel.

Following are the daemons that will run on the master node and the slave nodes :-


  1. The Namenode for the HDFS will run on the master node.
  2. The JobTracker for the MapReduce layer will run only on the master node.
  3. The Datanode for the HDFS will run on all the three nodes.
  4. The Tasktracker for the MapReduce will run on all the three nodes.

  • hadoop/conf/masters

This file specifies the node on which the secondary node on which the secondary namenode will run in the multi-node cluster. Here we will specify the master node for the secondary namenode to run.
Secondary namenode is not a substitute for the primary namenode. It does the following tasks:-
  1. It gets the edit logs from the namenode in regular intervals and applies to fsimage.
  2. When it has a new fsimage, it is copied back to the namenode.
  3. Namenode uses this image for the next restart which reduces the startup time.
The machine on which we will execute the bin/start-dfs.sh script will become the namenode and the machine on which we will execute the bin/start-mapred.sh script will become the jobtracker.
Coming back to the masters file. we will specify the hostname of the node in which we want to start the secondary namenode . Here we will specify the master node as we do not have too many nodes.
So make the master node entry in the masters file by specifying the hostname for the master node as shown :-




  • hadoop/conf/slaves

In this file we have to list out the hostnames of the machines which will act as the slave nodes. That is the machines in which the datanode and the tasktracker daemon will run. In our case all the three machines will be the slaves including the master node.
So specify the hostname of all the three machines in the slaves file as shown :-



  • hadoop/conf/core-site.xml

This file has to be altered in all the three machines. First, we have to specify the namenode for our multi-node hadoop cluster. So we will edit the value of the property fs.default.name in this file. In this property we have to specify the hostname of our master node as the namenode as shown :-



  • hadoop/conf/mapred-site.xml

Next we have to specify the node that will run the jobtracker for our multi-node hadoop cluster. So we will edit the value of the property mapred.job.tracker in this file. In this property also we have to specify the hostname of our master node as the jobtracker as shown :-





  • hadoop/conf/hdfs-site.xml

Lastly we have to set the replication factor of our multi-node hadoop cluster. Replication factor decides that, to how many nodes the data will be replicated before it is available for use. What we specify in this file's property will be the default replication factor of the cluster.
So we will edit the value of the property dfs.replication in this file. In this property we will specify the value as 3 as we have three slave nodes available for replication. We shouldn't specify it more than the number of slave nodes as it will result in an error. So we specify the value as shown :-



Then add one more property data.dfs.dir in the hdfs-site.xml for setting up the path for the data to be stored in hdfs. Do this in all the nodes, the master node as well as the slave nodes.



FORMATTING THE HDFS

We will now format hadoop's distributed file system via the namenode before we start our new multinode cluster. This is needed only when we setup the cluster for the first time.

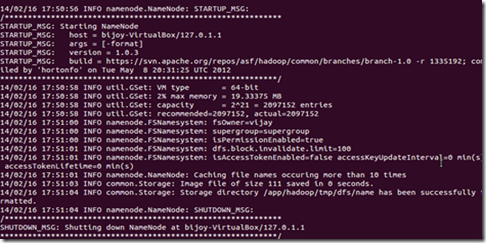

To format the HDFS via namenode we will issue the following command on our namenode :-





STARTING THE MULTINODE HADOOP CLUSTER

We will now start our new hadoop multi-node cluster :-

  • We will first start the HDFS  daemon that is the Namenode and the Datanode. Issue the bin/start-dfs.sh command on the master node. This will run the namenode on the machine on which you issued the command and the datanode  on the machines listed in the slaves file in the conf directory (i.e. all the machines in our case). The secondary namenode will be started in the master node in our case.


On the slave nodes we can check the success or failure of this command by looking at the log file in the hadoop/logs/hadoop-bijoy-datanode-deepika.log in the machine named as deepika and hadoop/logs/hadoop-bijoy-datanode-bijoy.log in the machine named as bijoy.

Now issue the jps command on the master node. If everything went right it should list the namenode, secondary namenode and the datanode as shown :-


Now issue the jps command on both of the slave nodes. If everything went right it should list the datanode as shown :-


  • Next we will start the MapReduce daemon that is the Jobtracker and the Tasktracker. Issue the bin/mapred-dfs.sh command on the master node. This will run the Jobtracker on the machine on which you issue the command and Tasktracker on the machines listed in the slaves file in the conf directory(i.e all the machines in our case.

On the slave nodes we can check the success or failure of this command by looking at the log file in hadoop/logs/hadoop-bijoytasktracker-deepika.log in the machine named as deepika and hadoop/logs/hadoop-bijoy-tasktracker-bijoy.log in the machine named as bijoy.


Now issue the jps command on the master node. If everything went right it should list the namenode, secondary namenode, datanode, jobtracker, and tasktracker as shown :-




 Now issue the jps command on both of the slave nodes. If everything went right it should list the datanode and the tasktracker as shown :-




STOPPING THE HADOOP CLUSTER

For stopping our hadoop multinode cluster we will go the reverse way.



  • First we will stop the MapReduce daemons by issuing the command bin/stop-mapred.sh on the namenode.

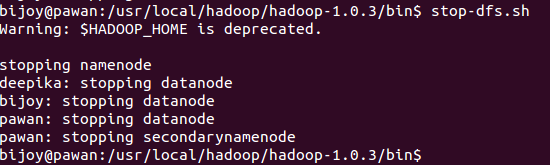

  • Next we will stop the HDFS daemons by issuing the command bin/stop-dfs.sh on the namenode.


  • Now issue the JPS command to check whether the HDFS and the MapReduce daemons have been stopped or not.
First check in the master node.



Then check in both the slave nodes with the same JPS command.



So this is how we setup a multinode hadoop cluster.
Hope this will be useful.


Thanks & Regards
Bijoy









Tuesday 18 February 2014

INSTALLING HADOOP SINGLE NODE CLUSTER ON UBUNTU

It's my pleasure to post my article with the sole objective to help people who want to get a jet start in BIG DATA world .As this is my first post I dedicate it to my father Mr. Pawan Kumar Khandelwal, the inspiration of my life .
This article will be useful for anyone in the installation of hadoop from scratch without any big data knowledge. Then your are all set to explore the BIG DATA world......
Apache Hadoop is an open-source software framework for storage and large scale processing of data-sets on clusters of commodity hardware and incorporates features similar to those of Google File System (GFS) and of the MapReduce computing paradigm. Hadoop's HDFS is a highly fault tolerant distributed file system and, like Hadoop in general, designed to be deployed on low-cost hardware thus being very cost-effective. It provides high throughput access to application data and is suitable for applications that have large data sets.
Here I am going to explain the process of setting up a single node hadoop cluster with Hadoop Distributed File System underneath...going forward i will extend it to a multi-node cluster in my next post.. So here we go...
I am taking my machine configuration as default...
Requirements
       1. Windows 7 OS with 4 GB RAM and 500 GB HDD
                 2. Oracle VM Virtual Box 4.3.2
                 3. Hadoop 1.0.3
                 4. Ubuntu 13.04
                 5. Daemon Tools Lite 4.48.1.0347
                 6. Oracle Java 7
                 7. Internet Connection
Download Links
       1. Oracle VM Virtual Box
https://s3-us-west-2.amazonaws.com/blog-singlenodehadoop/ORACLE+VIRTUAL+BOX/VirtualBox-4.3.2-90405-Win.exe

                 2. Hadoop 1.0.3
https://s3-us-west-2.amazonaws.com/blog-singlenodehadoop/Hadoop/hadoop-1.0.3.tar.gz

                 3. Ubuntu 13.04
https://s3-us-west-2.amazonaws.com/blog-singlenodehadoop/Ubuntu+13.04/ubuntu-13.04-desktop-amd64.iso

                 4. Daemon Tools
https://s3-us-west-2.amazonaws.com/blog-singlenodehadoop/Daemon+Tools/DTLite4481-0347%5B2%5D.exe
INSTALLING DAEMON TOOLS LITE
       1. Download DAEMON TOOLS from the above mentioned link.
                 2. Run the downloaded setup file.
                 3. Choose the language as English and click NEXT.
                 4. You will be prompted for agreeing to the License Agreement, Click on "I Agree".
       5. Next it asks for choosing the License type. Choose the Free License and Click NEXT.
       6. In the next window , it displays the components to be added in the installation . Leave it to its default and click NEXT.
       7. Next , it prompts you to Install Entrusted Search Protect . Select the Express radio button and click NEXT.
       8. Then it gives you an offer to install Tune up Utilities for system performance. It's optional . If you want it select the checkbox or deselect it and click NEXT.
       9. Next , select the location in which you want Daemon Tools to be installed. Default is "C:\Program Files (x86)\DAEMON Tools Lite". You can change the location if
           you want and click install.
      10. Finally click on CLOSE. Now you have Daemon Tools sucessfully installed on your system.
INSTALLING ORACLE VM VIRTUAL BOX
       1. Download the Oracle VM Virtual Box from the above mentioned link.
       2. Run the downloaded setup file.
       3. Click NEXT on the setup wizard.
       4. Change the location of installation if required or else leave it as default which is C:\Program Files\Oracle\VirtualBox\ and click NEXT.

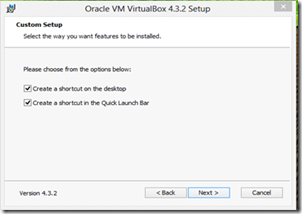

       5. Select or Deselect the options to create shortcuts on desktop or launch bar according to your requirements and click NEXT.

       6. Oracle VM Virtual Box networking feature resets your network connection and temporarily disconnect you from the network . When it asks you for a confirmation
            for installation, Click “YES”.
      7. For review purpose one more level of confirmation comes up. Click on BACK if any changes is required in the previous steps or click INSTALL.
      8. While installation it prompts for installing Oracle Corporation Universal Serial Bus . Click on INSTALL.
      9. Finally click FINISH. Now you have your Oracle VM Virtual Box sucessfully installed and ready to use.
CONFIGURING A VM
Now we will start with the creation and configuration of VM using our Oracle VM Virtual Box. As our objective for now is to create a single-node hadoop cluster we will create only one VM with the necessary configuration.
     1. Run the Oracle VM Virtual Box from your Desktop.
               2. Click on NEW to create a new Virtual Machine.
     3. Give your VM a name of your Choice. ( I have given Bijoy_Master).
     4. Choose the type of Operating System you are going to install in the VM. (Linux).
     5. Finally choose the version of the Operating System that is Ubuntu (64 bit) and click NEXT.
     6. Now, select the amount of memory (RAM) in megabytes to be allocated to the VM. Select 2 GB for better performance. You can change it according to the RAM
          available in your machine.
    7. In the next window select the second radio button , that is " Create a virtual hard drive now" and click NEXT.

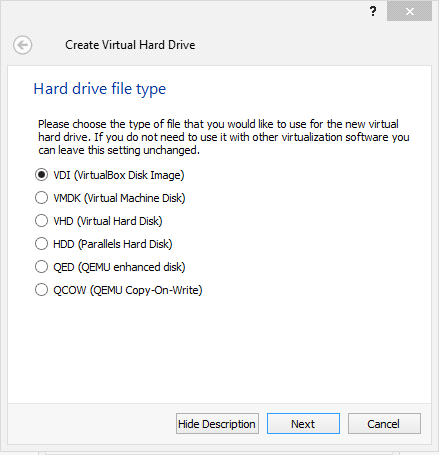

    8. Select VDI that is VirtualBox Disk Image and click NEXT.

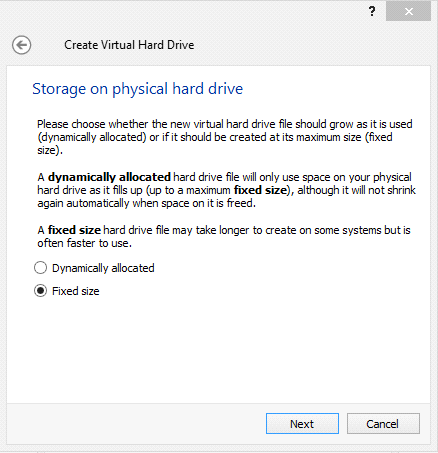

    9. Select fixed size Hard disk space for your VM because in Dynamic Allocation the space is occupied when data is stored but it is not freed when the data is released.
        And Fixed size allocation offers better speed.
        Click NEXT.
  10. Allocate the amount of Hard Disk space to the VM. Select 30 GB. You can increase or decrease your Hard Disk allocation depending upon your system's hard disk
        capacity.
        Click CREATE.
  11. It may take a few minutes to configure your VM. After completinn on the left side pane of the Oracle VM Virtual Box you can see your VM configured with the
        specified configurations.
INSTALLING UBUNTU
    1. Download Ubuntu 13.04 from the link mentioned above and save it to your disk in any location.
    2. Open Daemon Tools and click on the Add Image Tab.
    3. Go to the Ubuntu Location and select the Ubuntu image and load it.
    4. Click on the added image and click on the Mount button.
    5. You will get a notification that you have a CD drive added with UBUNTU image loaded.
    6. Click on the Oracle VM VirtualBox and start it.
    7. Click on SETTINGS and select STORAGE from the left pane. On the right pane click on Host Drive under Controller IDE. On the extreme right click on the disc image
         and choose the drive containing ubuntu image mounted via Daemon Tools. Click on OK. Now you have sucessfully added the disk drive and ready to use the ubuntu
         image inside the VM.
    8. Now, right click on the configured VM(Bijoy_Master) VM and click on START.
    9. When VM starts , it asks you to either TRY UBUNTU or INSTALL UBUNTU. Click on INSTALL UBUNTU and select the language according as per your choice.
  10. Next, it will prompt you to ensure that your VM has at least 5.4 GB available drive space, the machine is plugged to a power source and internet is connected. After
        ensuring everything is set, click on CONTINUE.

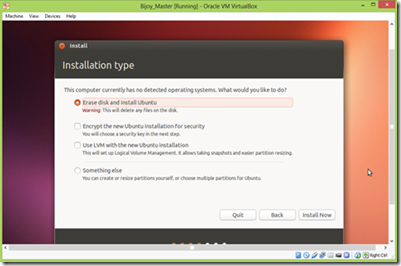

  11. In the next window , select ERASE DISK AND INSTALL UBUNTU and click on INSTALL NOW.
  12. In the next window select your city and click on the CONTINUE button.

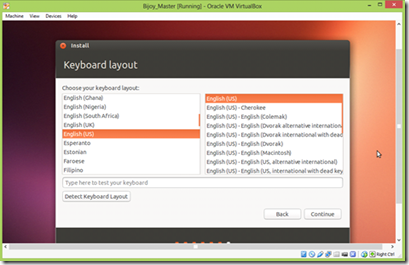

  13. Select your keyboard layout as English(US) and click CONTINUE.
  14. In the next window fill in your NAME, COMPUTER'S NAME, USERNAME and PASSWORD and click on CONTINUE.
  15. The installation starts and will take some time. Click Skip when it start dowloading language packs (if you dont require language packs).
  16. Unmount the ubuntu image from DAEMON TOOLS.
  17. The Oracle VM Virtual Box will be stopped. Then Start it again and right click on the VM and START.
  18. Ubuntu will start . Provide the password that was set during installation and log in to the system.
  19. Open the Terminal in Ubuntu.
INSTALLATION OF JAVA
   1. For installing Java 7 run the following commands on the terminal(requires internet connection)
      When prompted press ENTER to continue.
      Now you need to update the apt-get repository with the following command.
      Then run the following command for installation.
      It promts for confirmation , press Y and hit Enter.

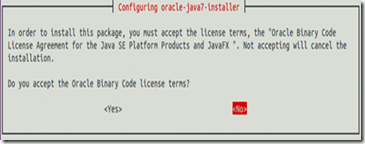

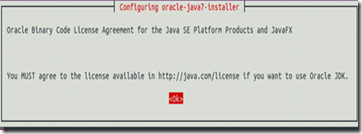

     Then it displays 2 windows one by one for accepting the license agreement.
     Select OK in the first window and YES in the second window.
     If the installation fails and shows an error "dpkg error processing oracle- java7- installer(--configure)" , try changing the PPA.
     Before changing the PPA, use PURGE to completely remove the previous unsuccessful installation of Java 7.
     Then use the following commands to change the PPA, and install Java 7.
     After installation verify the version of Java installed in your VM using the following command.
ADDING A DEDICATED HADOOP USER
    We will use a dedicated Hadoop user for running Hadoop. It is not mandatory, but it is advised to keep the other installations separate from the hadoop installation.
    For creating a dedicated hadoop user use the following commands.
    Group HADOOP is created.
    This creates "vijay" as a user under hadoop group.
    Remember the password for future reference.

SSH CONFIGURATION
    Hadoop requires SSH access to manage its nodes, that is, remote machine plus local machine. For our single-node cluster, configuration of SSH access to localhost for
    the user “vijay” is required.
   1. First we will generate an SSH key for user "vijay". Change the user to the hadoop user. (vijay)
   2. Now generate the SSH key for the hadoop user(vijay) using the following command.
        This will create a RSA key pair with a empty password. Generally, using an empty password is not recommended, but in this key it is required to unlock the key without
        your interaction (you don't want to enter the password everytime Hadoop interacts with its nodes).
   3. Now you have to enable SSH access to your local machine with this newly created key. Use the following command for the same.
   4. The final step is to test the SSH setup by connecting to your local machine with the hadoop user(vijay). The step is also needed to save your local machine's host key
        fingerprint to the hadoop user's(vijay) known_hosts file.
        Use the following command for the same.
   5. If you encounter an error as following :
       Then first move to the root user(bijoy) first using the "su - bijoy" command.
   6. Then install the openssh server using the following command.
       Openssh server will be installed. Then try the "ssh localhost" command.
   7. It will ask for a new SSH password (give one) and give a result like :
DISABLE IPV6
In Ubuntu using 0.0.0.0 for the various networking-related Hadoop configuration options will result in Hadoop binding to the IPV6 addresses of the ubuntu box. So there is no practical point in enabling IPV6 on a box when you are not connected to any IPV6 network . Hence it should be disabled.
   1. To disable IPV6 on Ubuntu , open /etc/sysctl.conf in an editor using the following command :
   2. Add the following lines to the end of the file:
           net.ipv6.conf.all.disable_ipv6 = 1
           net.ipv6.conf.default.disable_ipv6 = 1
           net.ipv6.conf.lo.disable_ipv6 = 1
       Press CTRL+X , save the file and exit from the editor.
    3. For the effect you need to restart the VM. So restart.
    4. After restarting, to check whether IPV6 has been disabled or not use the following command :
         If it show value as 1 , then IPV6 has been sucessfully disabled .
HADOOP INSTALLATION
    1. Download Hadoop from the link given above.
    2. Transfer the Hadoop 1.0.3. tar file in a pen drive.
    3. Now go to the VM and open the DEVICES menu and click on the pen drive. It will be detected by ubuntu.
    4. Open the pendrive and right click and copy the Hadoop tar file and paste it in the Ubuntu HOME directory.
    5. Now move to the terminal and make a directory for hadoop in location of your choice with the following command :
    6. Now move the hadoop tar file from Home directory to the hadoop directory that you created in the last step.
    7. Now move to the hadoop folder and extract the contents of the Hadoop 1.0.3 tar file using the following command.
    8. Now go to the path "/usr/local" give the ownership of the hadoop folder to the hadoop user(vijay) execute the following command.

UPDATING $HOME/.bashrc
    1. Open the $HOME/.bashrc file of the hadoop user(vijay).
    2. Add the following lines at the end of the $HOME/.bashrc file and save it.
CONFIGURATION
    1. Firstly we have to set our JAVA_HOME in the hadoop-env.sh file.
    2. Open /usr/local/hadoop/hadoop-1.0.3/conf/hadoop-env.sh file in an editor.
    3. Find the statement "The java implementation to use. Required"
         Change the Java_Home to /usr/lib/jvm/java-7-oracle/

    4. Save the file and exit.
    5. Then we will configure the directory where Hadoop will store it's data files. Our setup will use Hadoop Distributed File System(HDFS) , even though it is a single node
         cluster.
    6. Now we create the directory and set the required ownership and permissions.
    7. Move to the root user(here bijoy) using su - bijoy and providing the password.
    8. Use the following command to create the directory and provide permissions.
    9. Now move to the following path as hadoop user(vijay) using su - vijay.
               /usr/local/hadoop/hadoop-1.0.3/conf
   10. Open the core-site.xml file and add the following snippet between the <configuration> </configuration> tags.
            <property>
           <name>hadoop.tmp.dir</name>
           <value>/app/hadoop/tmp</value>
           <description>A base for other temporary directories.</description>
           </property>

           <property>
           <name>fs.default.name</name>
           <value>hdfs://localhost:54310</value>
           <description>
            The name of the default file system. A URI whose scheme and authority determine the FileSystem implementation. The uri's scheme determines the config
            property (fs.SCHEME.impl)naming the FileSystem implementation class. The uri's authority is used to determine the host, port, etc. for a filesystem.
          </description>
          </property>
   11. Open the mapred-site.xml file and add the following snippet between the <configuration> </configuration> tags.
          <property>
          <name>mapred.job.tracker</name>
          <value>localhost:54311</value>
          <description>The host and port that the MapReduce job tracker runs at. If "local", then jobs are run in-process as a single map and reduce task.</description>
          </property>

    12. Open the hdfs-site.xml and add the following snoppet between the <configuration> </configuration> tags.
          <property>
          <name>dfs.replication</name>
          <value>1</value>
          <description>Default block replication. The actual number of replications can be specified when the file is created.The default is used if replication is not
                                   specified in create time.
          </description>
          </property>
FORMATTING THE FILESYSTEM VIA NAMENODE
          The first step to start your Hadoop installation is to format the Hadoop File System which is implemented on the top of your local filesystem of your cluster. This is
          required for the first time you setup your Hadoop Cluster.
         1. To format the filesystem run the following command :
              The output will look like this :

GIVE A KICK START TO YOUR HADOOP SINGLE NODE CLUSTER
        1. To start your Hadoop Cluster execute the following command :
        2. The output will be like :
        3. We can check whether the expected process are running or not using JPS.
        4. We can also check whether Hadoop is listening to the configured ports using netstat.

        5. For stopping all daemons running on your machine the following command is to be executed:
        6. Make two folders in the HDFS path . One for input files and one for output files.
        7. Check the HDFS folders created.
        8. Now while any processing in your Hadoop Cluster put the input files in the input-data directory and specify the output path as output-data directory.
ENJOY THE HADOOP WEB INTERFACE

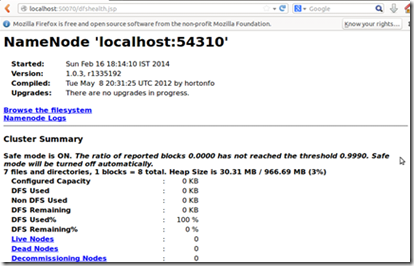

       1. The namenode UI shows you a cluster summary including information about total/remaining capacity, live and dead nodes. Aditionally, it allows you to browse the
            HDFS namespace and view the contents of its files in the web browser. It also gives access to the local machine's Hadoop log files.
            By default it is available at http://localhost:50070/

       2. The JobTracker Web UI provides information about general job statistics of the Hadoop Cluster, running/completed/failed jobs and a job history log file. It also
            gives access to the "local machine's " Hadoop log files (the machine in which the web UI is running on).
            By default it is available at http://locahost:50030/

       3. The task tracker web UI shows you running and non-running tasks. It also gives access to the "local machine's" Hadoop log files.
            By default it is available at http://localhost:50060/

So , here is your Single-node Hadoop Cluster ready for use.
Very soon I will come back with the tutorial to convert this Single-node Cluster to a multi-node Hadoop Cluster.
Please provide your valuable feedback if you find this tutorial useful.
Thanks & Regards
Bijoy Kumar Khandelwal
System Engineer,Big Data, Infosys Limited
